- Spoon Sports Prep "Type R" 1.8L DOHC
VTEC Engine & Transmission*
This "Type R" 1.8 Liter twin
cam engine and transmission are the actual components found on the Integra Type R's in
Japan. They are designed to fit into the late model Integra's (1994 to 1998).
The engine has been meticulously modified by Spoon Sports for High Performance Street
& Race Track use. This kit includes the following parts:
- Box 1 - B18C Type R Engine
- including Spoon Sports Oil Filler Cap
- including Spoon Sports Magnectic Drain Plug
- including Spoon Sports Thermostat
- including Spoon Sports Metal Head Gasket
- including Spoon Sports Spark Plugs (Heat Range #8)
- Box 2
- Type R Transmission Assy - 5 Speed w/ reconfigured Type R
gear ratios
- including Type R Limited Slip Differential
- Box 3
- Type R Intake Manifold with Spoon Sports Smooth Core
Conversion
- Spoon Sports Clutch Disc
- Spoon Sports Clutch Pressure Plate
- Spoon Sports Flywheel
- Type R T/O Bearing
- Box 4
- Engine Mount Set
- Starter Motor
- A/C Bracket (Aluminum)
- A/C Bracket (Steel)
- Radiator Hose (Upper)
- Radiator Hose (Lower)
- Distributor
- Box 5
- Shift Linkage Rod Set
- Engine Wiring Harness (please specify Left Hand or Right
Hand Drive)
- Spoon Sports Hi-Tension Spark Plug Wire Set
- Spoon Sports ECU
- ACC Bracket Set
- Box 6
- Type R Drive Shaft (Left & Right)
- Box 7
- Spoon Sports Exhaust Manifold/Header
- Spoon Sports Large Bore Throttle Body Assy
- Speed Meter Sensor
Retail Price - Please ask (pre-assembled motor)
* This kit is by special order only.
8-10 weeks for delivery. Deposit Required for Special Order.
- Spoon Sports Prep "Type R" 2.0L Stroked
DOHC VTEC Engine & Transmission*
Spoon Sports also offers an upgraded
2.0 Liter Stroked Type R Motor and Transmission Combo for the 1994 to 1998 Integra.
It includes all the components as in the 1.8 Liter Type R Motor and Transmission
above. The center of this specially developed 2.0 Liter Stroked Motor is the Spoon
Sports redesigned balanced crank shaft and high compression pistons. This
reconfiguration in the crank shaft specifications allows the engine to produce an
additional 25 HP over the race prep 1.8 Type R Motor!
Retail Price - Please ask (pre-assembled motor)
* This kit is by special order only.
8-10 weeks for delivery. Deposit Required for Special Order.
- Spoon Sports GSR to "Type R" Engine
Conversion*
This conversion will provide most of
the parts to upgrade your existing GSR Motor to the Type R configuration. The kit
includes the following:
- Type R Throttle Body (new '98 Type R Larger Bore T/B)
- Type R Intake Manifold with Spoon Sports Smooth Core
Conversion
- Type R Injector (set of 4)
- Type R Exhaust Manifold (new '98 Type R 4 into 1 Header
Design)
- Spoon Sports Hi-Tension Spark Plug Wire Set
- Type R Distributor Assy
- Type R Engine Bay Wiring Harness (please specify Left Hand
or Right Hand Drive)
- Type R Breather Chamber
- Type R Valve Cover (Red Color)
- Type R Cylinder Head
- Spoon Sports Head Bolts
- Spoon Sports Metal Head Gasket
- Type R Cam Shaft (Intake & Exhaust)
- Type R Cam Sprockets (Non-Adjustable)
- Spoon Sports Timing Belt Kit
- Type R Oil Cooler Hose Set (Inlet & Outlet)
- Type R Electronic Air Control Valve Hose Set (Inlet &
Outlet)
- Type R Breather Heater Hose
- Spoon Thermostat Assy
- Type R Thermostat Cover & Casing
- Type R Engine Gasket Kit (Upper)
Retail Price - Please ask (un-assembled)
* This kit is by special order only.
8-10 weeks for delivery. Deposit Required for Special Order.
Spoon Sports 2.0L Stroker Kit for
GSR/Type R Motor*
This Stroket kit will provide a new crank shaft
configured to bring the 1.8 Liter up to a 2.0 Liter displacement. The specifications
will increase the length of the piston stroke. This creates more bottom end power
response plus a 10% gain in top end horsepower.
Retail Price - Please ask
* This kit is by special order only.
8-10 weeks for delivery. Deposit Required for Special Order.

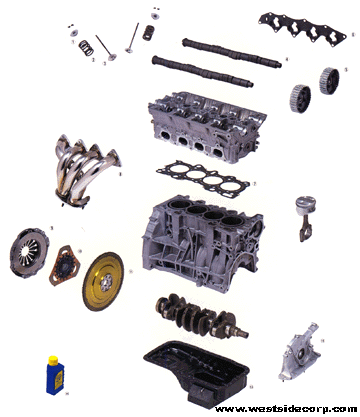

- Original B16A Power Unit Engine*
Spoon Sports
offers this fully upgraded B16A which has been stroked to 1.8 Liters. This original
stock motor is the same one found on the Japan Spec Civic 90-95 and Integra 90-93. This is
the same exact motor that is found on the U.S. Spec Del Sol DOHC VTEC and European VTI. This upgraded
motor can be purchased complete or the individual parts can be purchased seperately.
The engine comes with the following parts:
- Spoon Sports Basic Power Unit - Head & Block
- Spoon Sports Valves
- Spoon Sports Valve Springs
- Spoon Sports Valve Spring Retainers
- Spoon Sports Cam Shafts
- Spoon Sports Adjustable Cam Gears
- Spoon Sports Ventuli Plate
- Spoon Sports Metal Head Gasket
- Spoon Sports Exhaust Manifold (Primary Portion of Header)
- Spoon Sports Clutch Disc
- Spoon Sports Clutch Pressure Plate
- Spoon Sports Flywheel
- Spoon Sports High Pressure Oil Pump
- Spoon Sports Oil Pan
- Spoon Sports Oil Treatment
